Leírás
Az ET33C sorozatú kétcsatornás funkció/tetszőleges hullámgenerátor közvetlen digitális frekvenciaszintézis technológiát alkalmaz, amely nagy pontossággal, stabilitással és alacsony torzítással képes jeleket kiadni.
Jellemzők:
- 2,4 hüvelykes 320X240 TFT LCD, átlátszó grafikus felülettel.
- Kínai/angol menü elérhető.
- Mindkét csatorna egymástól független és fázisszinkronizációs funkcióval rendelkezik.
- Mintavételi sebesség: 200MSa/S, függőleges felbontás: 13 bit és tárolási mélység: 8k.
- 5 alapvető hullámforma és 32 tetszőleges beépített hullámforma.
- Hullámforma tárolás; Támogatja a felhasználó által definiált szerkesztett hullámformák 50 csoportjának belső tárolását;
- Impulzushullám kimenet élidőben beállítva.
- Belső AM, FM, PM modulációs funkció (Külső AM, FM, PM moduláció opcionális).
- Belső/külső ASK, FSK, PSK modulációs funkció;
- Kétcsatornás kimenet, maximális kimeneti frekvencia 60M;
- Lineáris/logaritmikus sweep és burst (impulzussorozat) hullámformák kimenete;
- 100 MHz-es nagy pontosságú frekvenciamérővel és 32 bites számlálóval;
- Standard USB-eszköz interfész; Opcionális külső analóg modulációs interfész;
- Többfunkciós tetszőleges hullámforma szerkesztő szoftverrel felszerelve.
Műszaki adatok:
- Csatlakozó: EU
- Modell: ET3340C
- Anyaga: ABS
- Tápfeszültség: AC 110-240V, 50-60Hz
- Kijelző: 2,4 hüvelykes TFT LED
- Frekvencia jellemzők:
- Szinusz: 1μHz ~ 40MHz
- Négyzet: 1μHz ~ 15MHz
- Háromszög: 1μHz ~ 15MHz
- Impulzus: 100μHz ~ 6MHz
- Tetszőleges: 1μHz~6MHz
- Frekvenciafelbontás: 1μHz
- Frekvencia pontosság: ±20 ppm
- Frekvenciastabilitás: ±1ppm / 3 óra
- Hullámforma jellemzői:
- Hullámforma típusok: Szinusz, négyzet, háromszög, impulzus, zaj és tetszőleges hullámok (beleértve a DC-t is). 32 féle tetszőleges hullám és 50 féle felhasználó által meghatározott hullám létezik.
- Hullámforma hossza: 8192 pont
- Hullámforma mintavételi sebesség: 200MSa/s
- Hullámforma függőleges felbontása: 13 bit
- Szinuszhullám jellemzői:
- Szinuszhullám: Harmonikus elnyomás mértéke: ≥45dBc (<1MHz); ≥40dBc (1MHz ~ 20MHz)
- Teljes harmonikus torzítás: <0,8% (20Hz ~ 20kHz, 0dBM)
- A négyzethullám jel jellemzői:
- Négyzethullám: emelkedés/esés: <20 ns
- Túllövés: <5%
- Üzemi ciklus: frekvencia<100kHz: 1% ~ 99%
- 100kHz≤frekvencia<5MHz: 20% ~ 80%
- 5 MHz ≤ frekvencia: 40% ~ 60% (0,1% felbontás)
- A pulzushullám jellemzői:
- Impulzushullám: Impulzusszélesség: Min. 20ns; 1ns felbontás
- Élugrási idő: Min. 20ns
- Túllövés: <5%
- Jitter: 6ns+0,1% periódus
- A fűrészfog hullám jellemzői:
- Fűrészfog hullám: Linearitási fok: ≥98% (0,01 Hz ~ 10 kHz)
- Szimmetria: 0,0-100,0% (felbontás 0,1%)
- Cikk mérete: 195*185*80mm
- A termék súlya: 598 g
- Csomag súlya: 1152g
- Csomag mérete: 27,5*23,5*12cm
Csomaglista:
1 * Jelgenerátor
1 * Tápkábel
2 * BNC koaxiális kábelek
1 * USB adatkábel
1 * Egyenes jelkábel
1 * Felhasználói kézikönyv (angol)
![East Tester Two-Channel Function/ Arbitrary Waveform Generator 40MHz Frequency Meter ET3340C Pulse Signal Source 200MSa/s Sampling Rate](https://regi.azolcsosag.hu/image/description_images/east-tester-two-channel-function--arbitrary-waveform-generator-40mhz-frequency-meter-et3340c-pulse-signal-source-200msa-s-sampling-rate/east-tester-two-channel-function--arbitrary-waveform-generator-40mhz-frequency-meter-et3340c-pulse-signal-source-200msa-s-sampling-rate_2024_04_26_0.jpg)
![East Tester Two-Channel Function/ Arbitrary Waveform Generator 40MHz Frequency Meter ET3340C Pulse Signal Source 200MSa/s Sampling Rate](https://regi.azolcsosag.hu/image/description_images/east-tester-two-channel-function--arbitrary-waveform-generator-40mhz-frequency-meter-et3340c-pulse-signal-source-200msa-s-sampling-rate/east-tester-two-channel-function--arbitrary-waveform-generator-40mhz-frequency-meter-et3340c-pulse-signal-source-200msa-s-sampling-rate_2024_04_26_1.jpg)
![East Tester Two-Channel Function/ Arbitrary Waveform Generator 40MHz Frequency Meter ET3340C Pulse Signal Source 200MSa/s Sampling Rate](https://regi.azolcsosag.hu/image/description_images/east-tester-two-channel-function--arbitrary-waveform-generator-40mhz-frequency-meter-et3340c-pulse-signal-source-200msa-s-sampling-rate/east-tester-two-channel-function--arbitrary-waveform-generator-40mhz-frequency-meter-et3340c-pulse-signal-source-200msa-s-sampling-rate_2024_04_26_2.jpg)
![East Tester Two-Channel Function/ Arbitrary Waveform Generator 40MHz Frequency Meter ET3340C Pulse Signal Source 200MSa/s Sampling Rate](https://regi.azolcsosag.hu/image/description_images/east-tester-two-channel-function--arbitrary-waveform-generator-40mhz-frequency-meter-et3340c-pulse-signal-source-200msa-s-sampling-rate/east-tester-two-channel-function--arbitrary-waveform-generator-40mhz-frequency-meter-et3340c-pulse-signal-source-200msa-s-sampling-rate_2024_04_26_3.jpg)
![East Tester Two-Channel Function/ Arbitrary Waveform Generator 40MHz Frequency Meter ET3340C Pulse Signal Source 200MSa/s Sampling Rate](https://regi.azolcsosag.hu/image/description_images/east-tester-two-channel-function--arbitrary-waveform-generator-40mhz-frequency-meter-et3340c-pulse-signal-source-200msa-s-sampling-rate/east-tester-two-channel-function--arbitrary-waveform-generator-40mhz-frequency-meter-et3340c-pulse-signal-source-200msa-s-sampling-rate_2024_04_26_4.jpg)
![East Tester Two-Channel Function/ Arbitrary Waveform Generator 40MHz Frequency Meter ET3340C Pulse Signal Source 200MSa/s Sampling Rate](https://regi.azolcsosag.hu/image/description_images/east-tester-two-channel-function--arbitrary-waveform-generator-40mhz-frequency-meter-et3340c-pulse-signal-source-200msa-s-sampling-rate/east-tester-two-channel-function--arbitrary-waveform-generator-40mhz-frequency-meter-et3340c-pulse-signal-source-200msa-s-sampling-rate_2024_04_26_5.jpg)
![East Tester Two-Channel Function/ Arbitrary Waveform Generator 40MHz Frequency Meter ET3340C Pulse Signal Source 200MSa/s Sampling Rate](https://regi.azolcsosag.hu/image/description_images/east-tester-two-channel-function--arbitrary-waveform-generator-40mhz-frequency-meter-et3340c-pulse-signal-source-200msa-s-sampling-rate/east-tester-two-channel-function--arbitrary-waveform-generator-40mhz-frequency-meter-et3340c-pulse-signal-source-200msa-s-sampling-rate_2024_04_26_6.jpg)
![East Tester Two-Channel Function/ Arbitrary Waveform Generator 40MHz Frequency Meter ET3340C Pulse Signal Source 200MSa/s Sampling Rate](https://regi.azolcsosag.hu/image/description_images/east-tester-two-channel-function--arbitrary-waveform-generator-40mhz-frequency-meter-et3340c-pulse-signal-source-200msa-s-sampling-rate/east-tester-two-channel-function--arbitrary-waveform-generator-40mhz-frequency-meter-et3340c-pulse-signal-source-200msa-s-sampling-rate_2024_04_26_7.jpg)
![East Tester Two-Channel Function/ Arbitrary Waveform Generator 40MHz Frequency Meter ET3340C Pulse Signal Source 200MSa/s Sampling Rate](https://regi.azolcsosag.hu/image/description_images/east-tester-two-channel-function--arbitrary-waveform-generator-40mhz-frequency-meter-et3340c-pulse-signal-source-200msa-s-sampling-rate/east-tester-two-channel-function--arbitrary-waveform-generator-40mhz-frequency-meter-et3340c-pulse-signal-source-200msa-s-sampling-rate_2024_04_26_8.jpg)
![East Tester Two-Channel Function/ Arbitrary Waveform Generator 40MHz Frequency Meter ET3340C Pulse Signal Source 200MSa/s Sampling Rate](https://regi.azolcsosag.hu/image/description_images/east-tester-two-channel-function--arbitrary-waveform-generator-40mhz-frequency-meter-et3340c-pulse-signal-source-200msa-s-sampling-rate/east-tester-two-channel-function--arbitrary-waveform-generator-40mhz-frequency-meter-et3340c-pulse-signal-source-200msa-s-sampling-rate_2024_04_26_9.jpg)
![East Tester Two-Channel Function/ Arbitrary Waveform Generator 40MHz Frequency Meter ET3340C Pulse Signal Source 200MSa/s Sampling Rate](https://regi.azolcsosag.hu/image/description_images/east-tester-two-channel-function--arbitrary-waveform-generator-40mhz-frequency-meter-et3340c-pulse-signal-source-200msa-s-sampling-rate/east-tester-two-channel-function--arbitrary-waveform-generator-40mhz-frequency-meter-et3340c-pulse-signal-source-200msa-s-sampling-rate_2024_04_26_10.jpg)
![East Tester Two-Channel Function/ Arbitrary Waveform Generator 40MHz Frequency Meter ET3340C Pulse Signal Source 200MSa/s Sampling Rate](https://regi.azolcsosag.hu/image/description_images/east-tester-two-channel-function--arbitrary-waveform-generator-40mhz-frequency-meter-et3340c-pulse-signal-source-200msa-s-sampling-rate/east-tester-two-channel-function--arbitrary-waveform-generator-40mhz-frequency-meter-et3340c-pulse-signal-source-200msa-s-sampling-rate_2024_04_26_11.jpg)
![East Tester Two-Channel Function/ Arbitrary Waveform Generator 40MHz Frequency Meter ET3340C Pulse Signal Source 200MSa/s Sampling Rate](https://regi.azolcsosag.hu/image/description_images/east-tester-two-channel-function--arbitrary-waveform-generator-40mhz-frequency-meter-et3340c-pulse-signal-source-200msa-s-sampling-rate/east-tester-two-channel-function--arbitrary-waveform-generator-40mhz-frequency-meter-et3340c-pulse-signal-source-200msa-s-sampling-rate_2024_04_26_12.jpg)
![East Tester Two-Channel Function/ Arbitrary Waveform Generator 40MHz Frequency Meter ET3340C Pulse Signal Source 200MSa/s Sampling Rate](https://regi.azolcsosag.hu/image/description_images/east-tester-two-channel-function--arbitrary-waveform-generator-40mhz-frequency-meter-et3340c-pulse-signal-source-200msa-s-sampling-rate/east-tester-two-channel-function--arbitrary-waveform-generator-40mhz-frequency-meter-et3340c-pulse-signal-source-200msa-s-sampling-rate_2024_04_26_13.jpg)

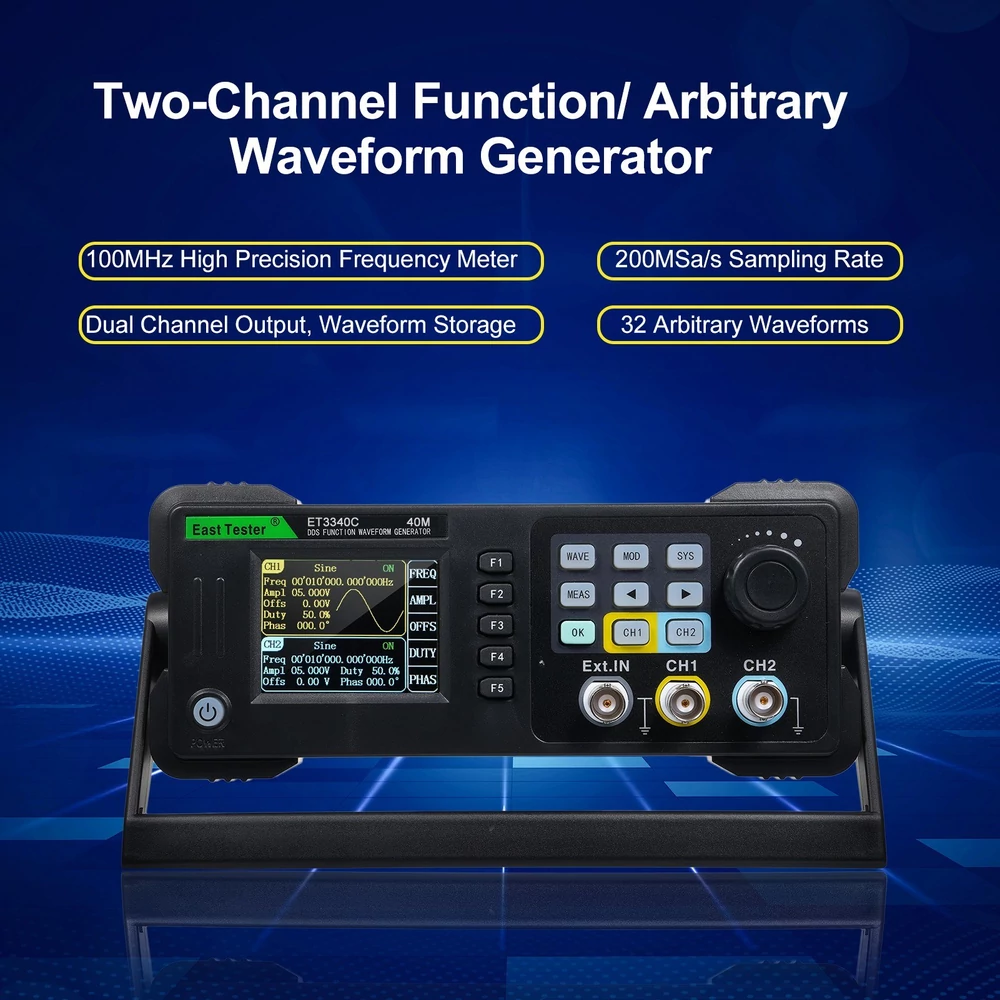

ET33C series two-channel function/arbitrary wave generator adopts direct digital frequency synthesis technology, which can output signals with high accuracy, stability and low distortion.
Features:

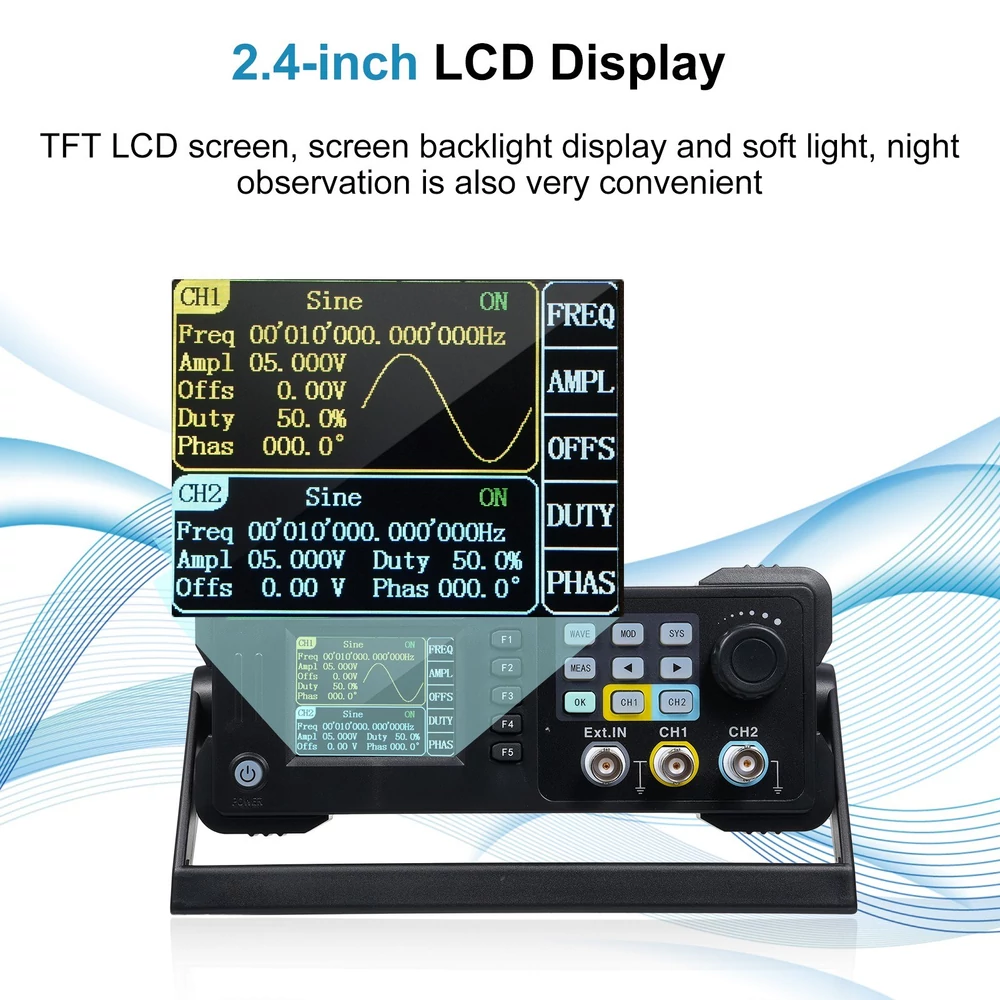

1. 2.4-inch 320X240 TFT LCD with clear graphic interface.
2. Chinese / English menu available.
3. Both channels are independent of each other and have phase synchronization function.
4. Sampling rate: 200MSa/S, vertical resolution: 13 bit and storage depth: 8k.
5. 5 basic waveforms and 32 arbitrary waveforms in-built.
6. waveform storage; Support internal storage of 50 groups of user-defined edited waveforms;
7. Pulse wave output set in edge time.
8. Internal AM, FM, PM modulation function (External AM, FM, PM modulation is optional).
9. Internal/external ASK, FSK, PSK modulation function;
10. Dual channel output, maximum output frequency 60M;
11. Output of linear/logarithmic sweep and burst (pulse train) waveforms;
12. With 100MHz high precision frequency meter and 32 bit counter;
13. Standard USB Device interface; Optional external analog modulation interface;
14. Equipped with multifunctional arbitrary waveform editing software.
Specifications:
Plug: EU / US / UK (Optional)
Model: ET3340C
Material: ABS
Power Voltage: AC 110~240V, 50~60Hz
Display: 2.4 inch TFT LED

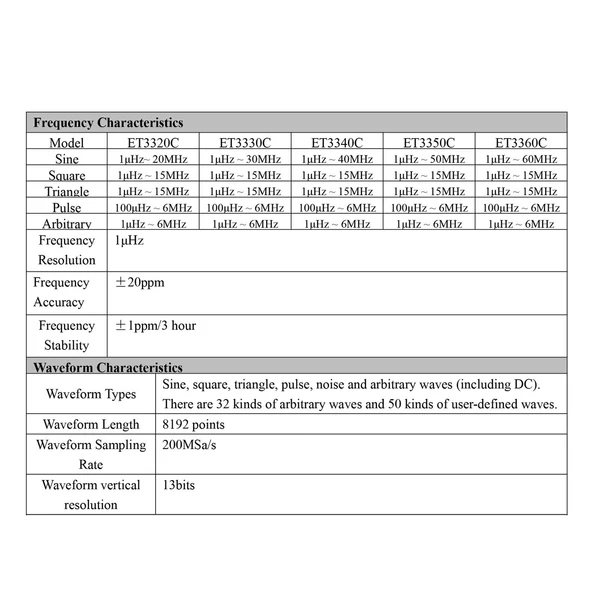

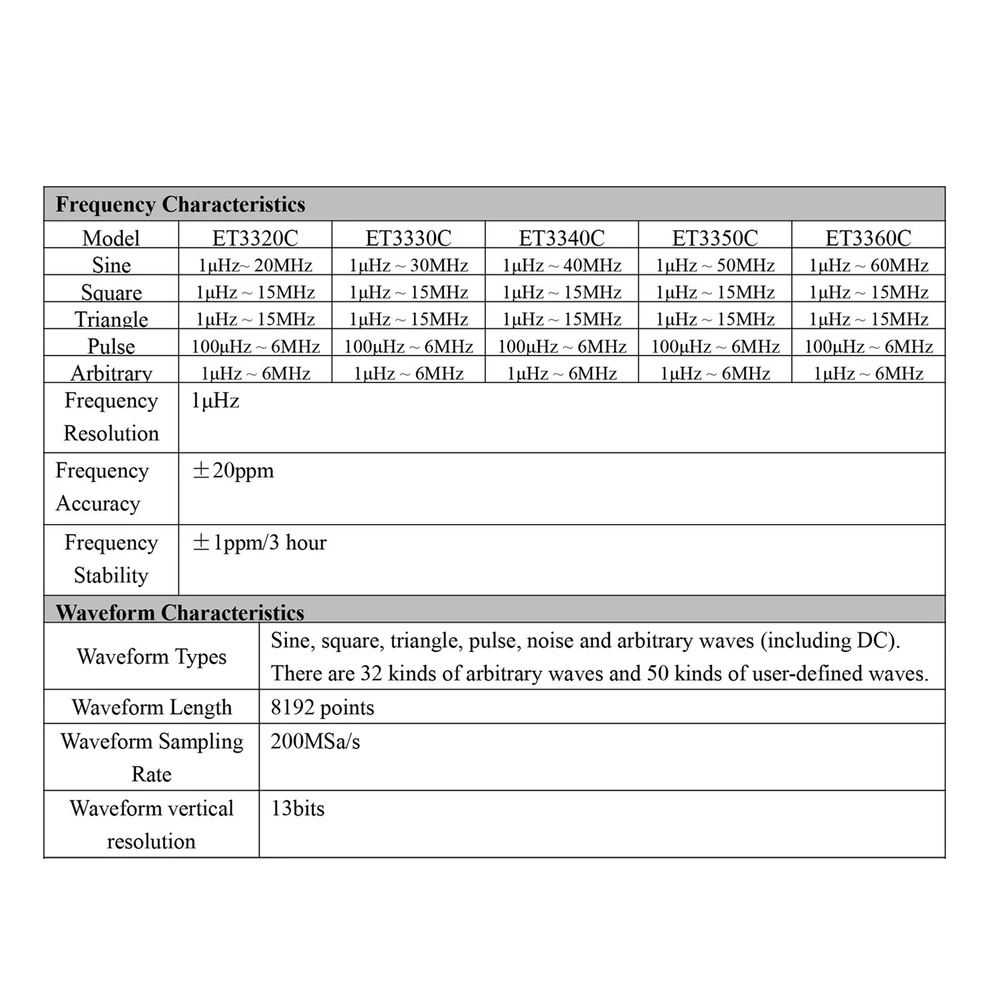

Frequency Characteristics:
Sine: 1μHz~40MHz
Square: 1μHz~15MHz
Triangle: 1μHz~15MHz
Pulse: 100μHz~6MHz
Arbitrary: 1μHz~6MHz
Frequency Resolution: 1μHz
Frequency Accuracy: ±20ppm
Frequency Stability: ±1ppm / 3 hour
Waveform Characteristics:
Waveform Types: Sine, square, triangle, pulse, noise and arbitrary waves (including DC). There are 32 kinds of arbitrary waves and 50 kinds of user-defined waves.
Waveform Length: 8192 points
Waveform Sampling Rate: 200MSa/s
Waveform Vertical Resolution: 13bits
Sine Wave Characteristics:
Sine Wave: Harmonic Suppression Degree: ≥45dBc (<1MHz); ≥40dBc (1MHz~20MHz)
Total Harmonic Distortion: <0.8% (20Hz~20kHz, 0dBM)
Square Wave Signal Characteristics:
Square Wave: Rise/Fall: <20ns
Overshoot: <5%
Duty Cycle: freq<100kHz: 1%~99%
100kHz≤freq<5MHz: 20%~80%
5MHz≤freq: 40%~60% (0.1% resolution)
Pulse Wave Characteristics:
Pulse Wave: Pulse Width: Min 20ns; 1ns resolution
Edge jump time: Min 20ns
Overshoot: <5%
Jitter: 6ns+0.1%Period
Sawtooth Wave Characteristics:
Sawtooth Wave: Linearity Degree: ≥98% (0.01Hz~10kHz)
Symmetry: 0.0~100.0% (resolution 0.1%)

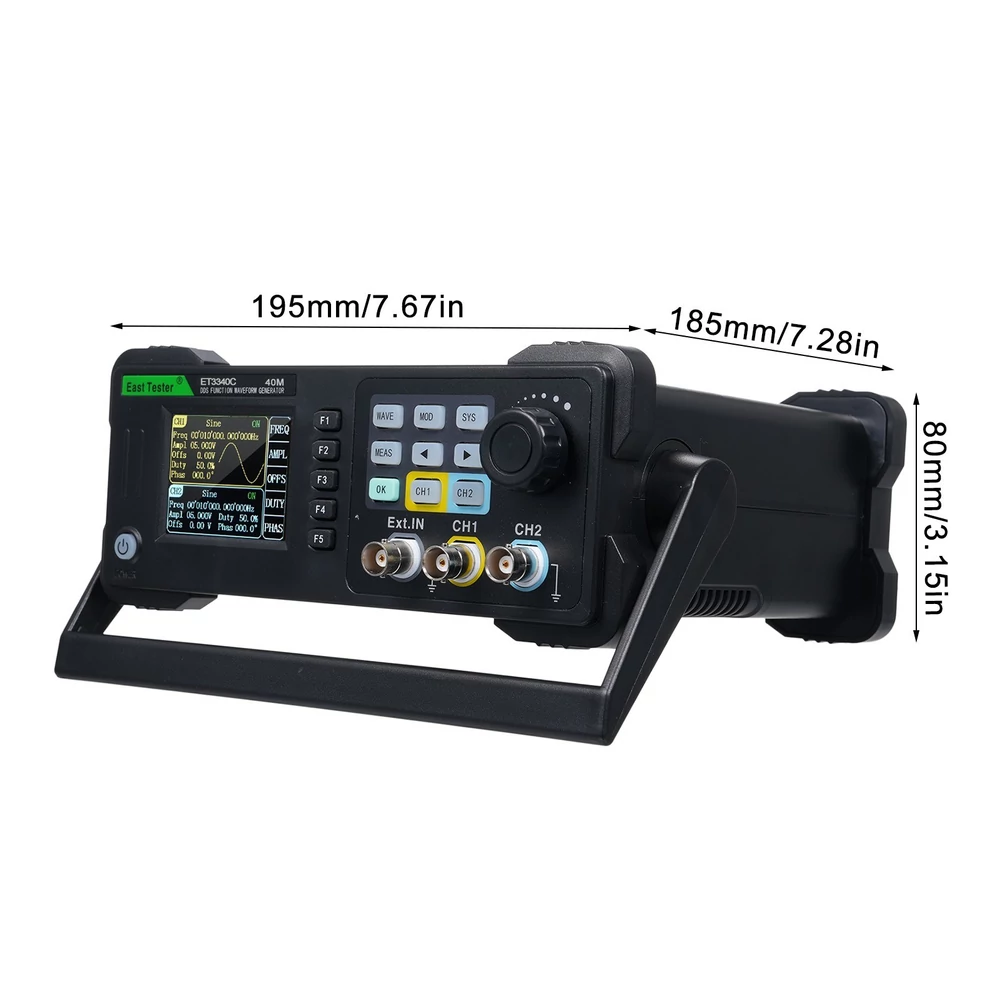

Item Size: 195 * 185 * 80mm / 7.67 * 7.28 * 3.15in
Item Weight: 598g / 1.32lb
Package Weight: 1152g / 2.54lb
Package Size: 27.5 * 23.5 * 12cm / 10.82 * 9.25 * 4.72in

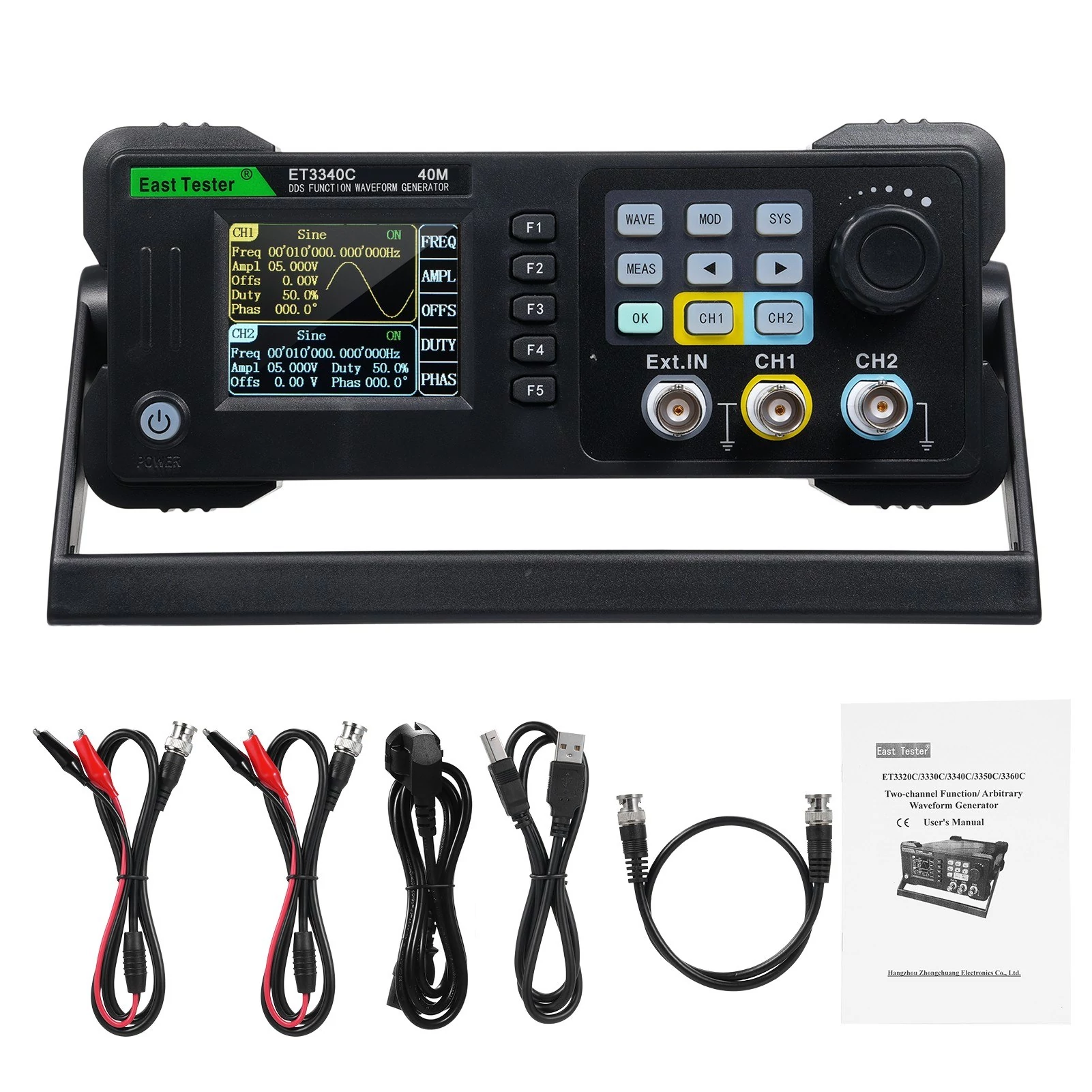

Package List:
1 * Signal Generator
1 * Power Cable
2 * BNC Coaxial Cables
1 * USB Data Cable
1 * Straight Signal Cable
1 * User Manual (English)
